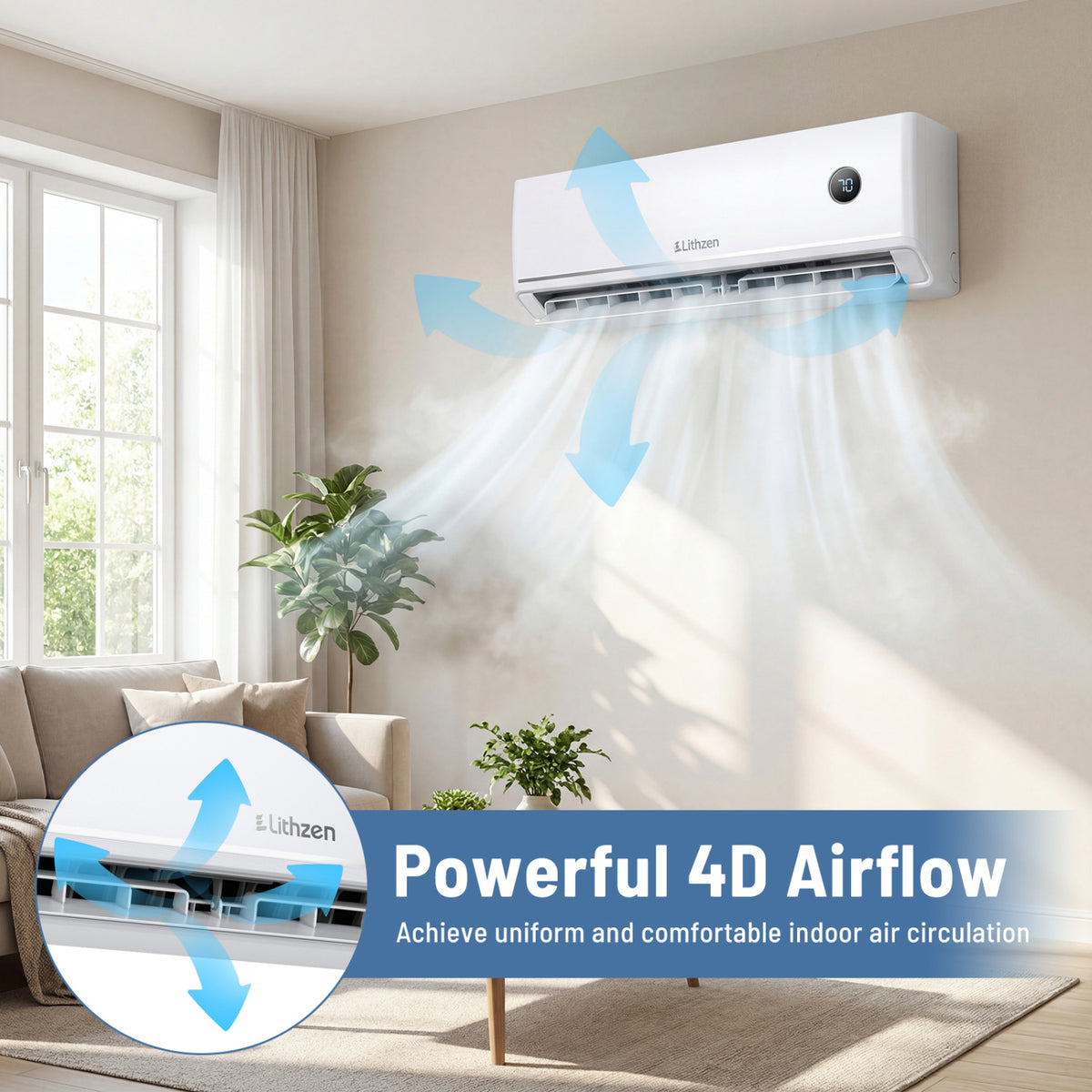

  • 18,000 BTU mini split indoor air handler, view 2

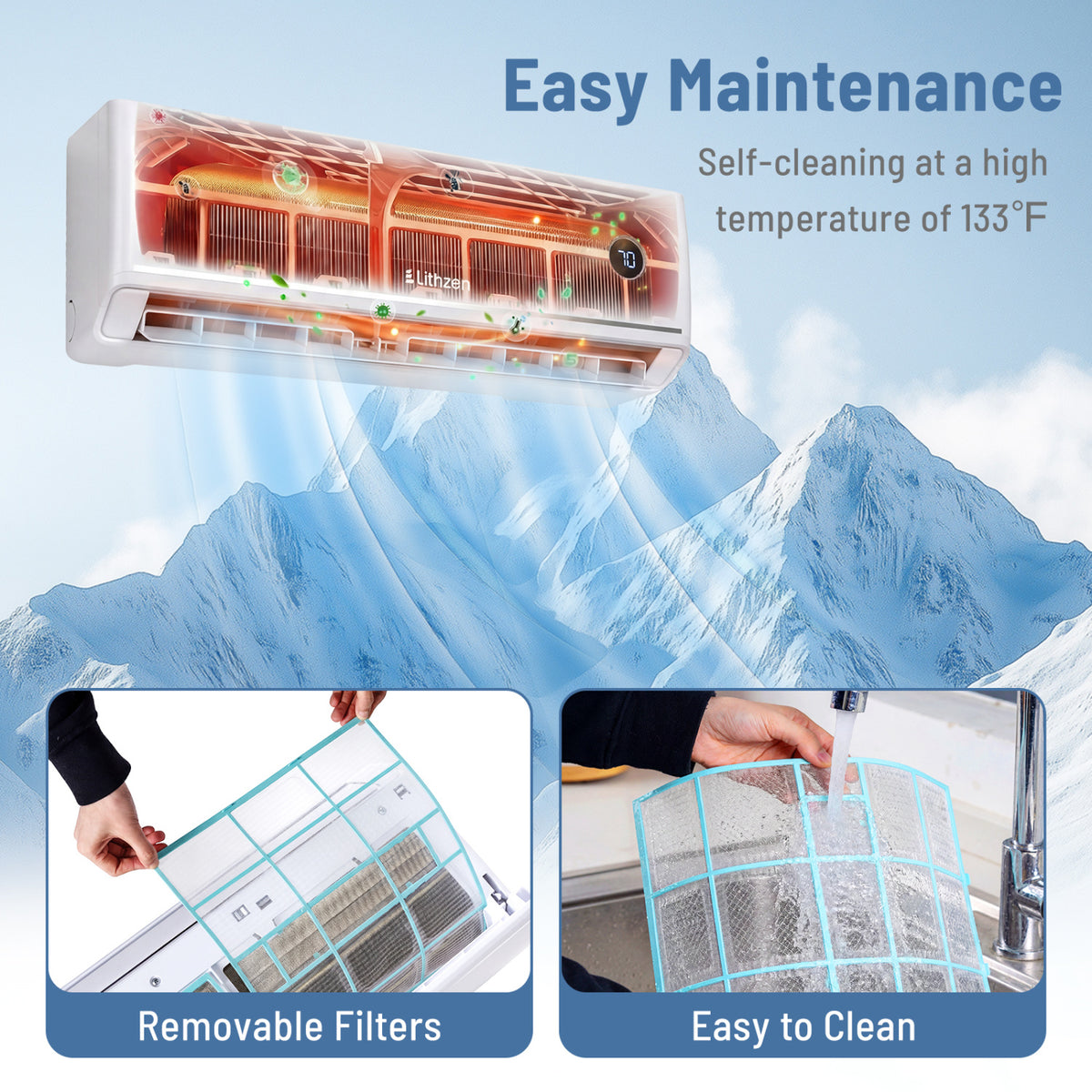

  • 18,000 BTU mini split indoor air handler, view 3
  • 18,000 BTU mini split product image 5
  • 18,000 BTU mini split product image 6
  • 18,000 BTU mini split product image 7
  • 18,000 BTU mini split product image 8
  • 18,000 BTU mini split product image 9
  • 18,000 BTU mini split product image 10
1 10

18,000 BTU 18.1 SEER2 Mini Split Heat Pump, 208-230V

18,000 BTU 18.1 SEER2 Mini Split Heat Pump, 208-230V

MPN FP11063US-WH+

$659.00
$669.00 $659.00
Shipping calculated at checkout.
Free freight included
In stock

Quantity is live from the supplier portal.

  • 18,000BTU
  • 18.1SEER2
  • 208-230V
  • Coverage1000 sq ft
  • WiFiYes

Ships freight, 3–7 business days, lower 48 only. Curbside LTL delivery. Someone should be home to receive a heavy condenser and indoor unit. No AK, HI, PR, US territories, or PO boxes. Shipping details

18,000 BTU 18.1 SEER2 ductless mini split heat pump on 208-230V power. Rated for about 1000 sq ft of living space. Inverter compressor with 18,000 BTU heating, 8.2 HSPF2, R32 refrigerant. Rated to operate down to 5°F outdoor. WiFi app and voice control built in; remote included. Ships freight free to the lower 48 in 3-7 business days. Professional EPA 608 install recommended.

  • 18,000 BTU cooling / 18,000 BTU heating; covers about 1000 sq ft
  • 18.1 SEER2 / 8.2 HSPF2 inverter efficiency
  • 208-230V, 60 Hz single phase; dedicated circuit

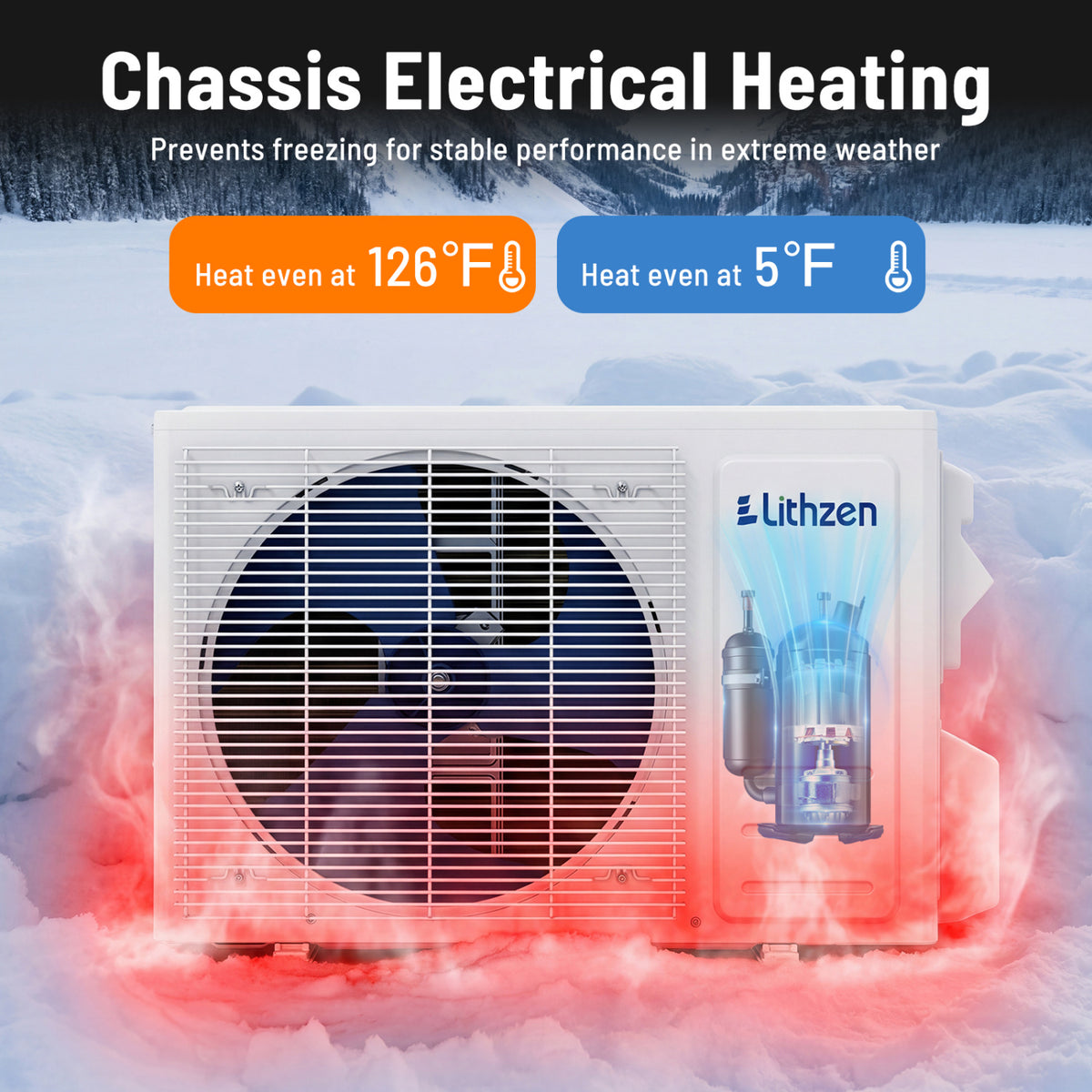

  • Heat pump operates down to 5°F outdoor
  • WiFi app control + Alexa voice; remote included; 23 dB indoor

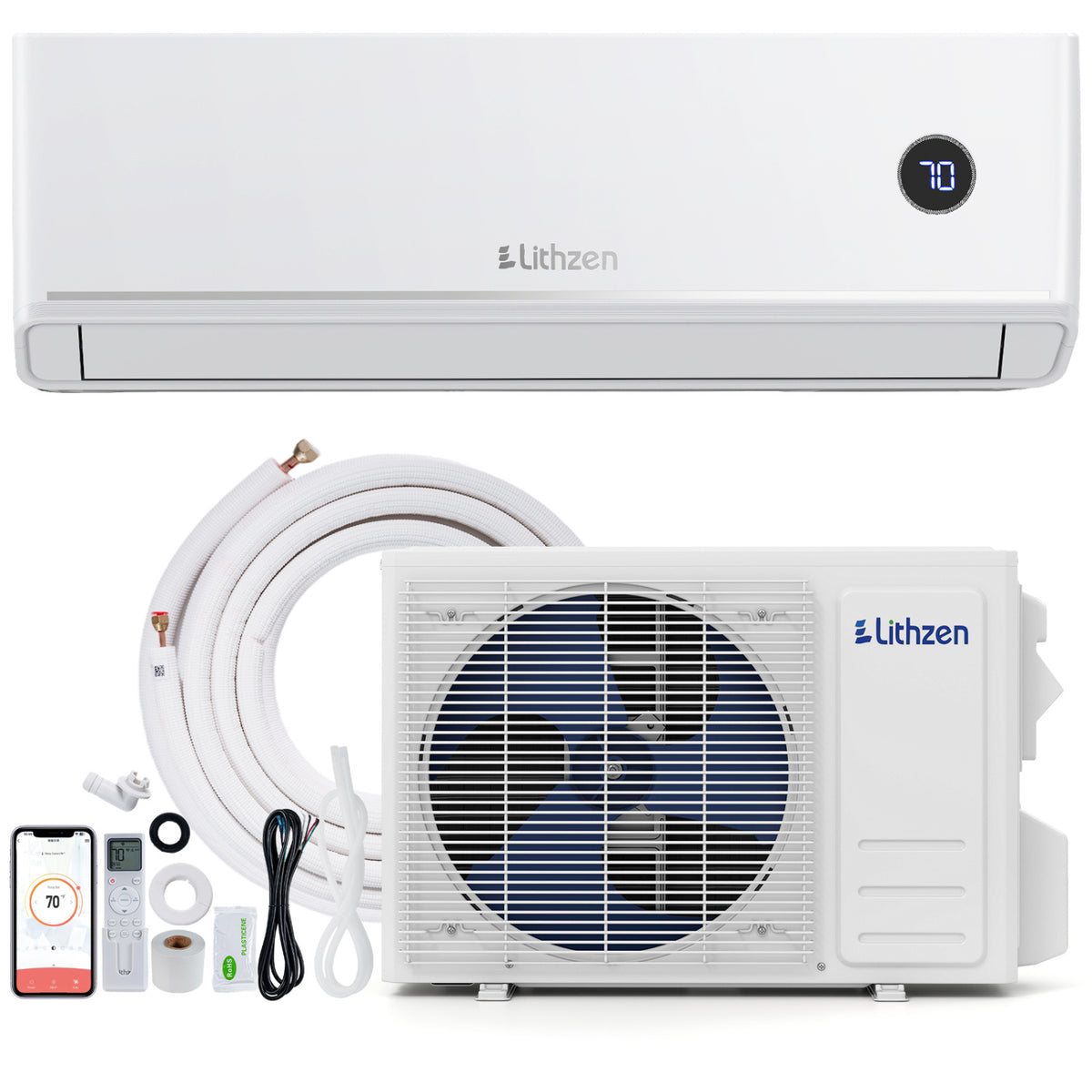

  • Ships as indoor head, outdoor condenser, 13 ft line set and install kit; 2 boxes

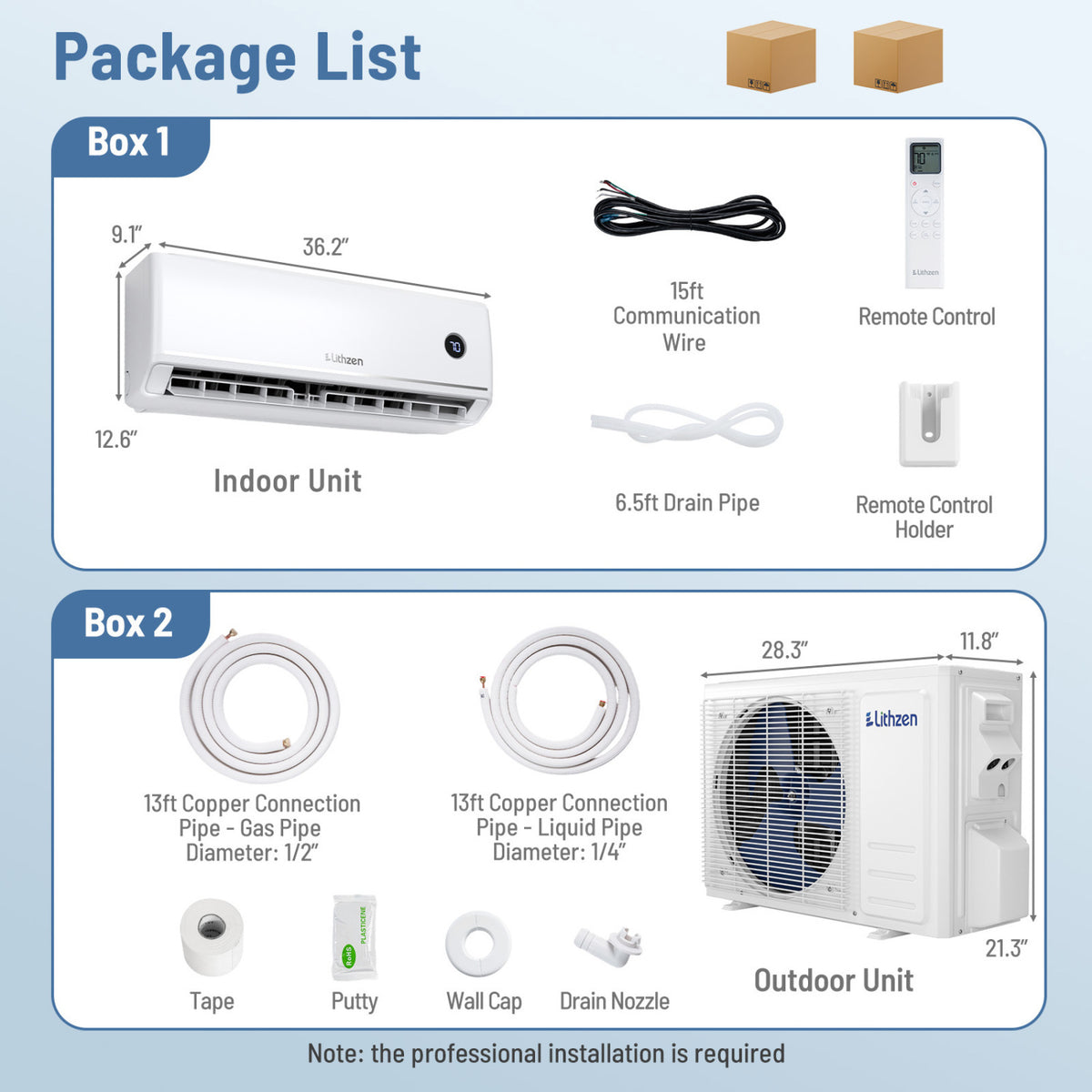

What's in the box

  • 1 x Indoor Unit
  • 1 x Outdoor Unit
  • 1 x 13ft Copper Connection Pipe - Liquid Pipe
  • 1 x 13ft Copper Connection Pipe - Gas Pipe
  • 1 x 15ft Communication Wire
  • 1 x 6.5 ft Drain Pipe
  • 1 x Remote Control
  • 1 x Remote Control Holder
  • 1 x Drain Nozzle
  • 1 x Wall Cap
  • 1 x Tape
  • 1 x Putty
  • 1 x User Guide
Needs a dedicated 208–230V circuit. Not a 115V wall outlet.

Specifications

Cooling capacity18,000 BTU
Heating capacity18,000 BTU
SEER218.1
HSPF28.2
Voltage208-230V
Coverage1000 sq ft
RefrigerantR32
Heating min outdoor temp5°F
WiFiYes
Energy StarNo
Warranty5-year (Costway limited warranty)
Line set13 ft
ColorWhite
MaterialCold-rolled Steel Sheet, Copper, Aluminum
Indoor Unit Dimensions32.1" x 7.7" x 11.3"
Outdoor Unit Dimensions28.3" x 11.8" x 21.3"
Frequency60Hz
Cooling Power1520W
Heating Power1450W
Coverage Area1000 Sq.Ft/35㎡
Air Flow Volume530 CFM
Dehumidification Capacity66 Pints/Day (31.2 L/Day)
Temperature Setting Range60°F~90°F/16℃~32℃
Max Remote Control Distance26 ft
Indoor Noise Level23 dB
Diameter of Gas Pipe1/2"
Diameter of Liquid Pipe1/4"
Net Weight of Indoor Unit25.4 lbs
Net Weight of Outdoor Unit60.6 lbs
Is Assembly RequiredYes
Box Qty2
Package Includes1 x Indoor Unit , 1 x Outdoor Unit

Sizing note

Rated for about 1000 sq ft as a starting point. Room size is a starting point, not a load calculation. Sun, ceiling height, insulation, and humidity move the number. Sizing guide

Install and warranty

Sells as equipment only. We recommend an EPA Section 608 certified HVAC tech. Incorrect install can void the manufacturer warranty.

Manufacturer (Costway) limited warranty, passed through: 5-year (Costway limited warranty). No labor coverage from us.
