EchoCool 11,500 BTU 17 SEER2 Mini Split Heat Pump, 208-230V

EchoCool 11,500 BTU 17 SEER2 Mini Split Heat Pump, 208-230V

Series EchoCoolMPN FP10996US-WH+

$499.00
$509.00 $499.00
Shipping calculated at checkout.
Free freight included
In stock

Quantity is live from the supplier portal.

  • 11,500BTU
  • 17.0SEER2
  • 208-230V
  • Coverage750 sq ft
  • WiFiYes

Ships freight, 3–7 business days, lower 48 only. Curbside LTL delivery. Someone should be home to receive a heavy condenser and indoor unit. No AK, HI, PR, US territories, or PO boxes. Shipping details

EchoCool 11,500 BTU 17 SEER2 ductless mini split heat pump on 208-230V power. Rated for about 750 sq ft of living space. Inverter compressor with 11,500 BTU heating, 8.3 HSPF2, R32 refrigerant. Rated to operate down to 5°F outdoor. WiFi app and voice control built in; remote included. Ships freight free to the lower 48 in 3-7 business days. Professional EPA 608 install recommended.

  • 11,500 BTU cooling / 11,500 BTU heating; covers about 750 sq ft
  • 17 SEER2 / 8.3 HSPF2 inverter efficiency
  • 208-230V, 60 Hz single phase; dedicated circuit (MCA 11A)

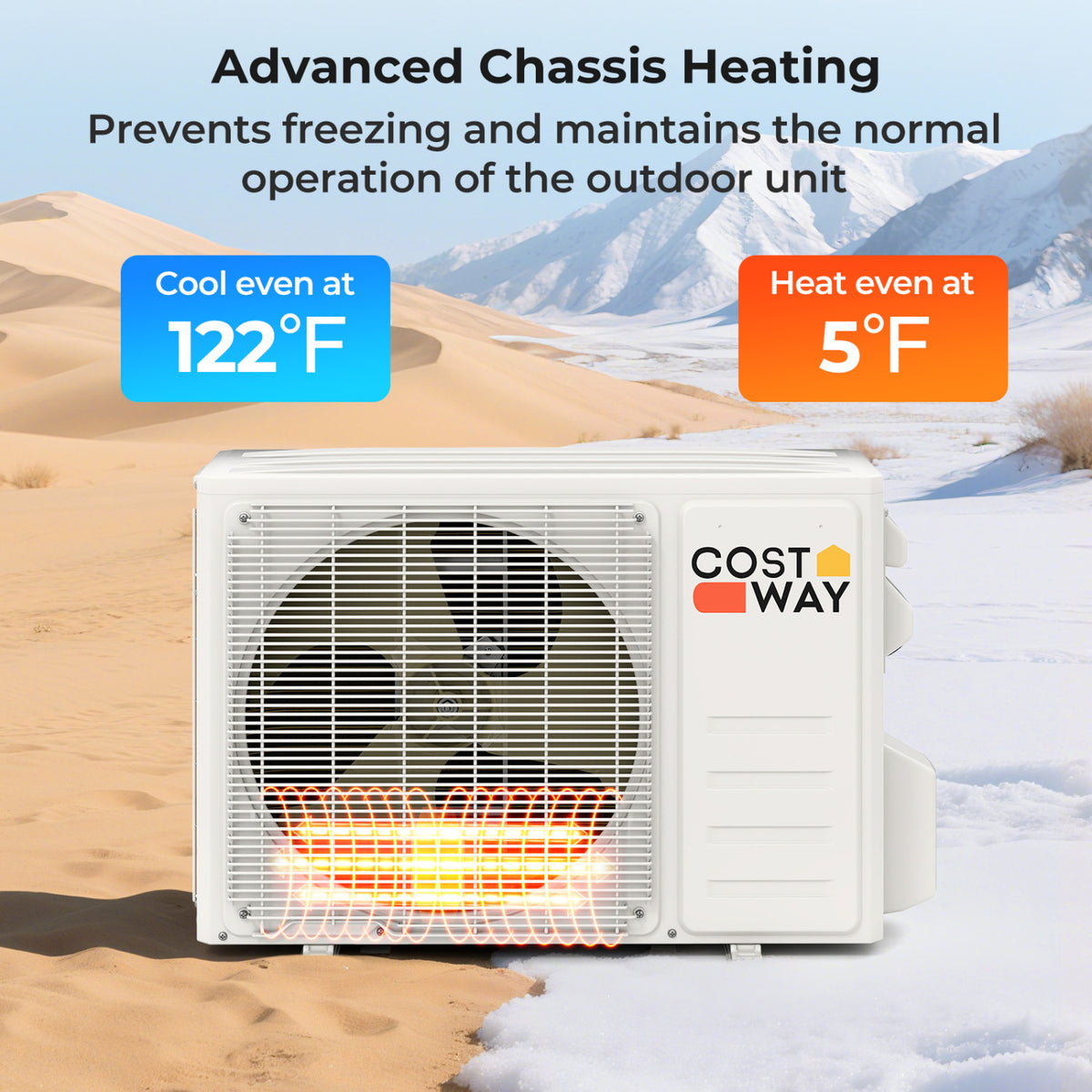

  • Heat pump operates down to 5°F outdoor
  • WiFi app control; remote included; 28 dB indoor

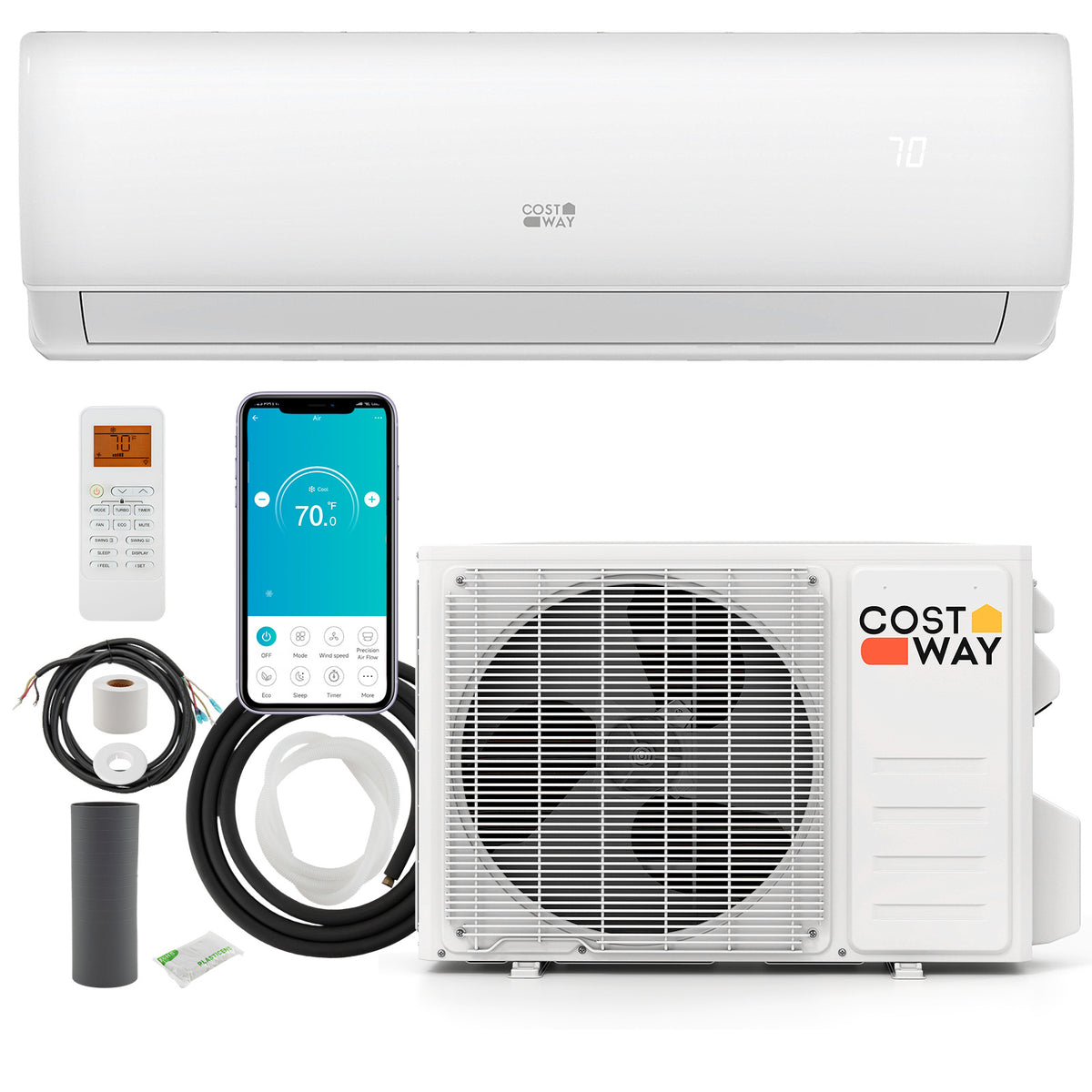

  • Ships as indoor head, outdoor condenser, 13 ft line set and install kit; 2 boxes

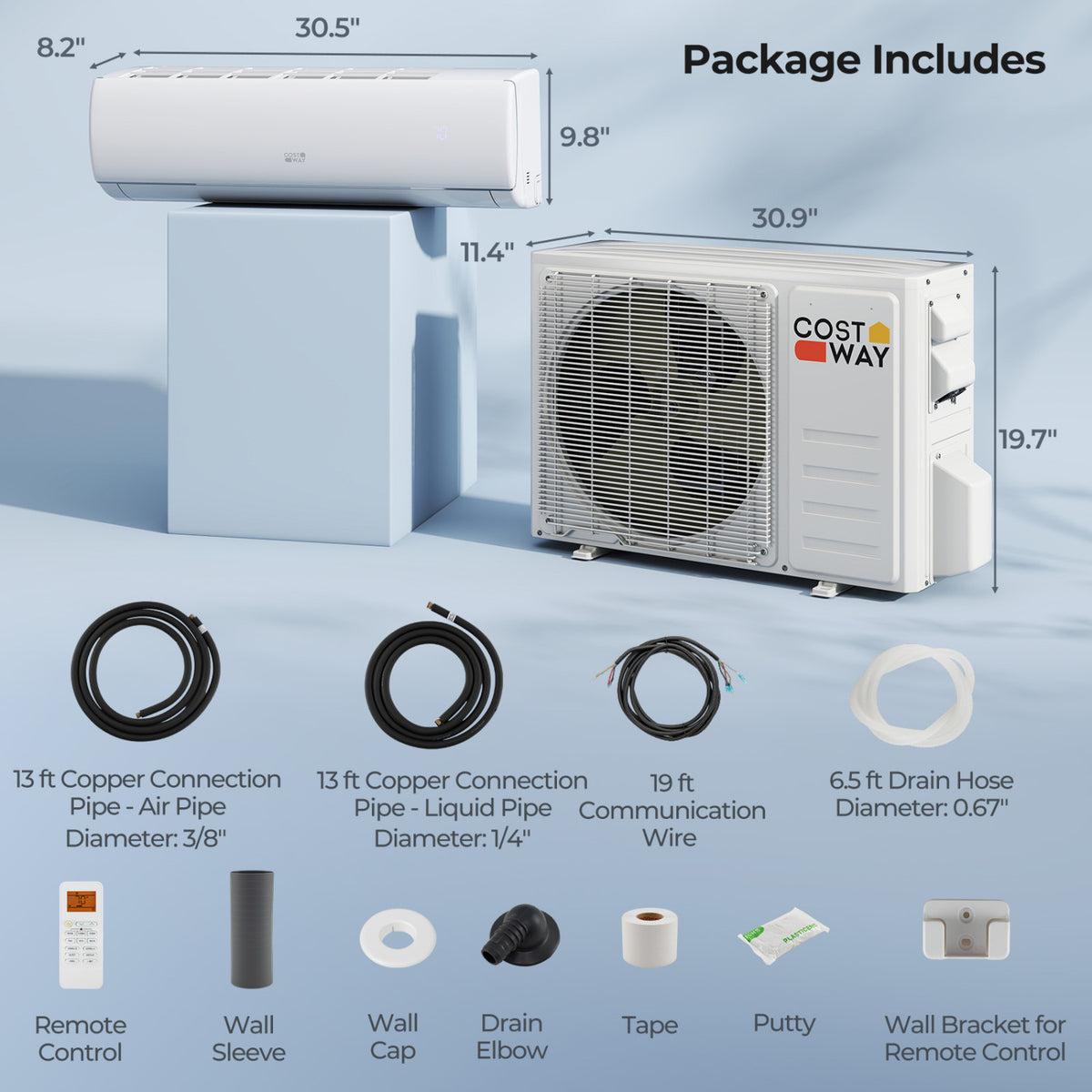

What's in the box

  • 1 x Indoor Unit
  • 1 x Outdoor Unit
  • 1 x 13 ft Copper Connection Pipe - Air Pipe
  • 1 x 13 ft Copper Connection Pipe - Liquid Pipe
  • 1 x 5.8 m/19 ft Communication Wire
  • 1 x 2 m/6.5 ft Drain Hose
  • 1 x Remote Control
  • 1 x Wall Bracket for Remote Control
  • 1 x Wall Sleeve
  • 1 x Wall Cap
  • 1 x Drain Elbow
  • 1 x Tape
  • 1 x Putty
  • 1 x User Guide
Needs a dedicated 208–230V circuit. Not a 115V wall outlet.

Specifications

SeriesEchoCool
Cooling capacity11,500 BTU
Heating capacity11,500 BTU
SEER217
HSPF28.3
Voltage208-230V
Coverage750 sq ft
RefrigerantR32
Heating min outdoor temp5°F
WiFiYes
Energy StarNo
Warranty5-year (Costway limited warranty)
Line set13 ft
ColorWhite
MaterialMetal, Aluminum, Copper, AS
Indoor Unit Dimensions30.5" x 8.2" x 9.8"
Outdoor Unit Dimensions30.9" x 11.4" x 19.7"
Diameter of Air Pipe3
Diameter of Liquid Pipe1
Diameter of Drain Pipe0.67"
Max Remote Control Distance39 ft
Min. Circuit Ampacity11A
Cooling Power1170W
Heating Power1100W
Coverage Area750 Sq.Ft/70㎡
Air Flow Volume294 CFM
Dehumidifying Capacity66 Pints/Day (31.2 L/Day)
Temperature Setting Range60°F~88°F/ 16℃~31℃
Indoor Noise Level28 dB
Outdoor Noise Level55 dB
Net Weight of Indoor Unit20 lbs
Net Weight of Outdoor Unit53.5 lbs
Box Qty2(May vary by batch)
Package Includes1 x Indoor Unit

Sizing note

Rated for about 750 sq ft as a starting point. Room size is a starting point, not a load calculation. Sun, ceiling height, insulation, and humidity move the number. Sizing guide

Install and warranty

Sells as equipment only. We recommend an EPA Section 608 certified HVAC tech. Incorrect install can void the manufacturer warranty.

Manufacturer (Costway) limited warranty, passed through: 5-year (Costway limited warranty). No labor coverage from us.
