EchoCool 23,000 BTU 17 SEER2 Mini Split Heat Pump, 208-230V

Name: EchoCool 23,000 BTU 17 SEER2 Mini Split Heat Pump, 208-230V
Brand: Costway
SKU: FP10998US-WH+
Price: 939.00 USD
Availability: InStock

Series EchoCoolMPN FP10998US-WH+

$939.00

~~$949.00~~ $939.00

Shipping calculated at checkout.

Free freight included

In stock

Quantity is live from the supplier portal.

23,000BTU
17.0SEER2
208-230V
Coverage1500 sq ft
WiFiYes

Ships freight, 3–7 business days, lower 48 only. Curbside LTL delivery. Someone should be home to receive a heavy condenser and indoor unit. No AK, HI, PR, US territories, or PO boxes. Shipping details

EchoCool 23,000 BTU 17 SEER2 ductless mini split heat pump on 208-230V power. Rated for about 1500 sq ft of living space. Inverter compressor with 22,400 BTU heating, 9.5 HSPF2, R32 refrigerant. Rated to operate down to 5°F outdoor. WiFi app and voice control built in; remote included. Ships freight free to the lower 48 in 3-7 business days. Professional EPA 608 install recommended.

23,000 BTU cooling / 22,400 BTU heating; covers about 1500 sq ft
17 SEER2 / 9.5 HSPF2 inverter efficiency
208-230V, 60 Hz single phase; dedicated circuit (MCA 17A)

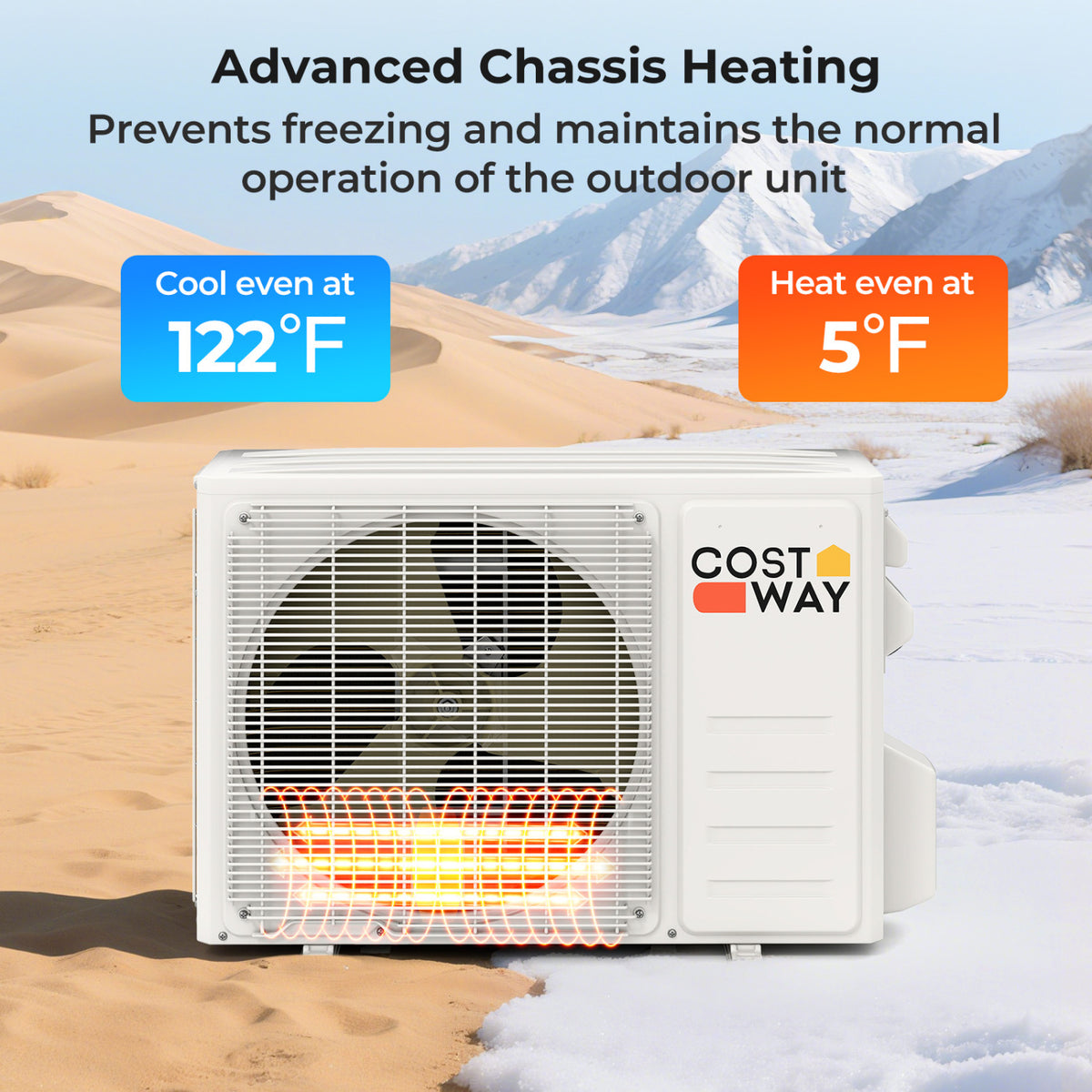

Heat pump operates down to 5°F outdoor
WiFi app control; remote included; 28 dB indoor
Ships as indoor head, outdoor condenser, 13 ft line set and install kit; 2 boxes

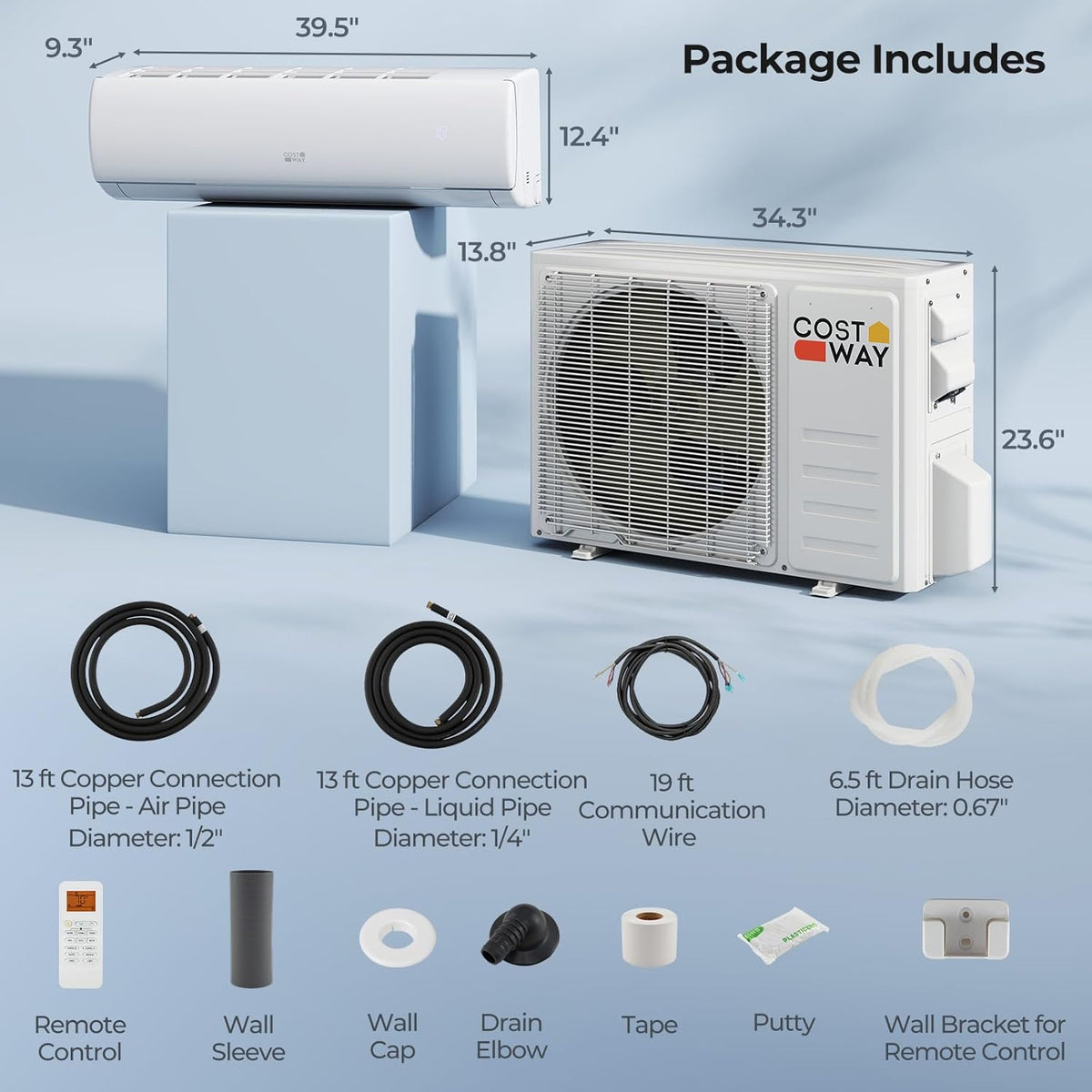

What's in the box

1 x Indoor Unit
1 x Outdoor Unit
1 x 13 ft Copper Connection Pipe - Air Pipe
1 x 13 ft Copper Connection Pipe - Liquid Pipe
1 x 5.8 m/19 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose

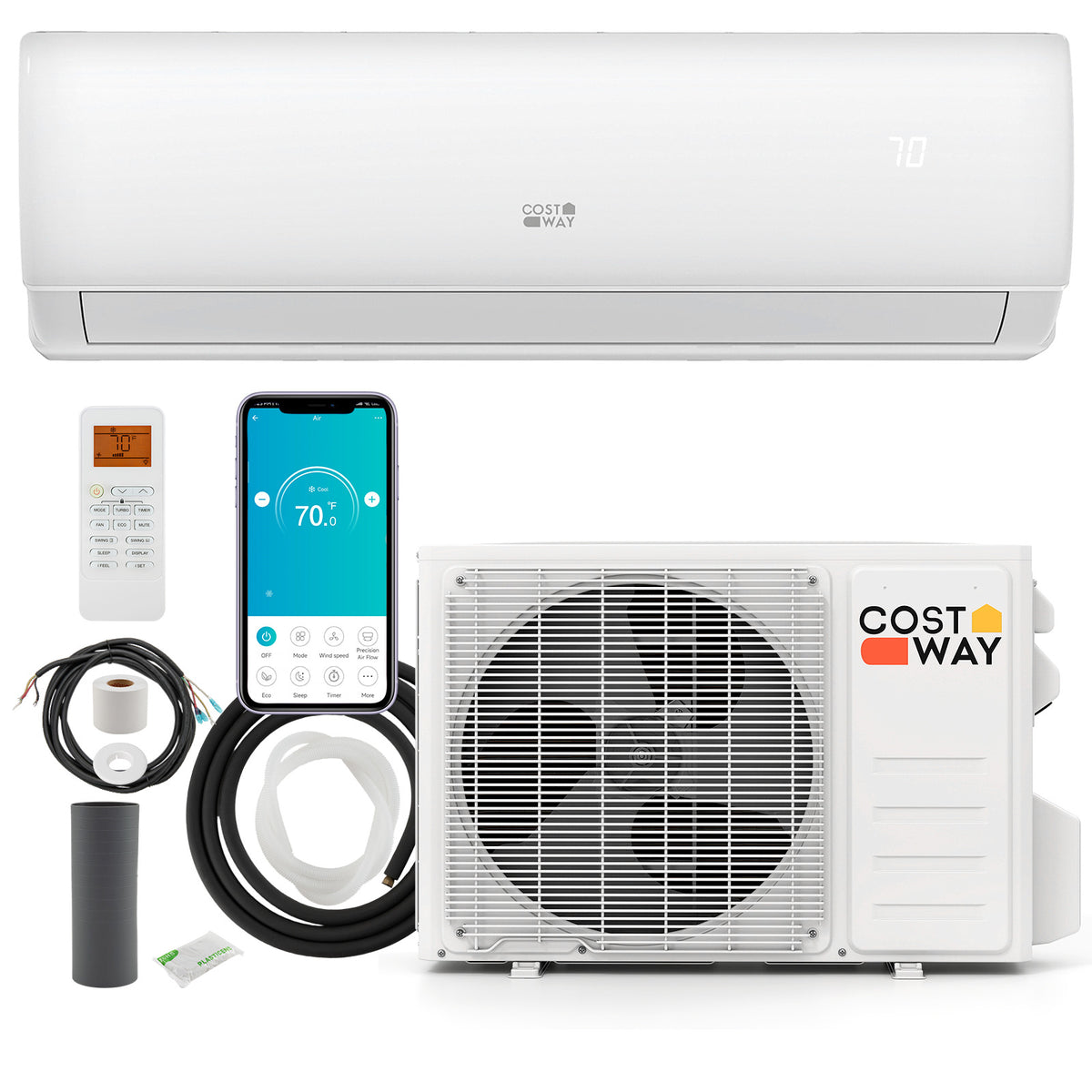

1 x Remote Control
1 x Wall Bracket for Remote Control
1 x Wall Sleeve
1 x Wall Cap
1 x Drain Elbow
1 x Tape
1 x Putty
1 x User Guide

Needs a dedicated 208–230V circuit. Not a 115V wall outlet.

Specifications

Series	EchoCool
Cooling capacity	23,000 BTU
Heating capacity	22,400 BTU
SEER2	17
HSPF2	9.5
Voltage	208-230V
Coverage	1500 sq ft
Refrigerant	R32
Heating min outdoor temp	5°F
WiFi	Yes
Energy Star	No
Warranty	5-year (Costway limited warranty)
Line set	13 ft
Color	White
Material	Metal, Aluminum, Copper, AS

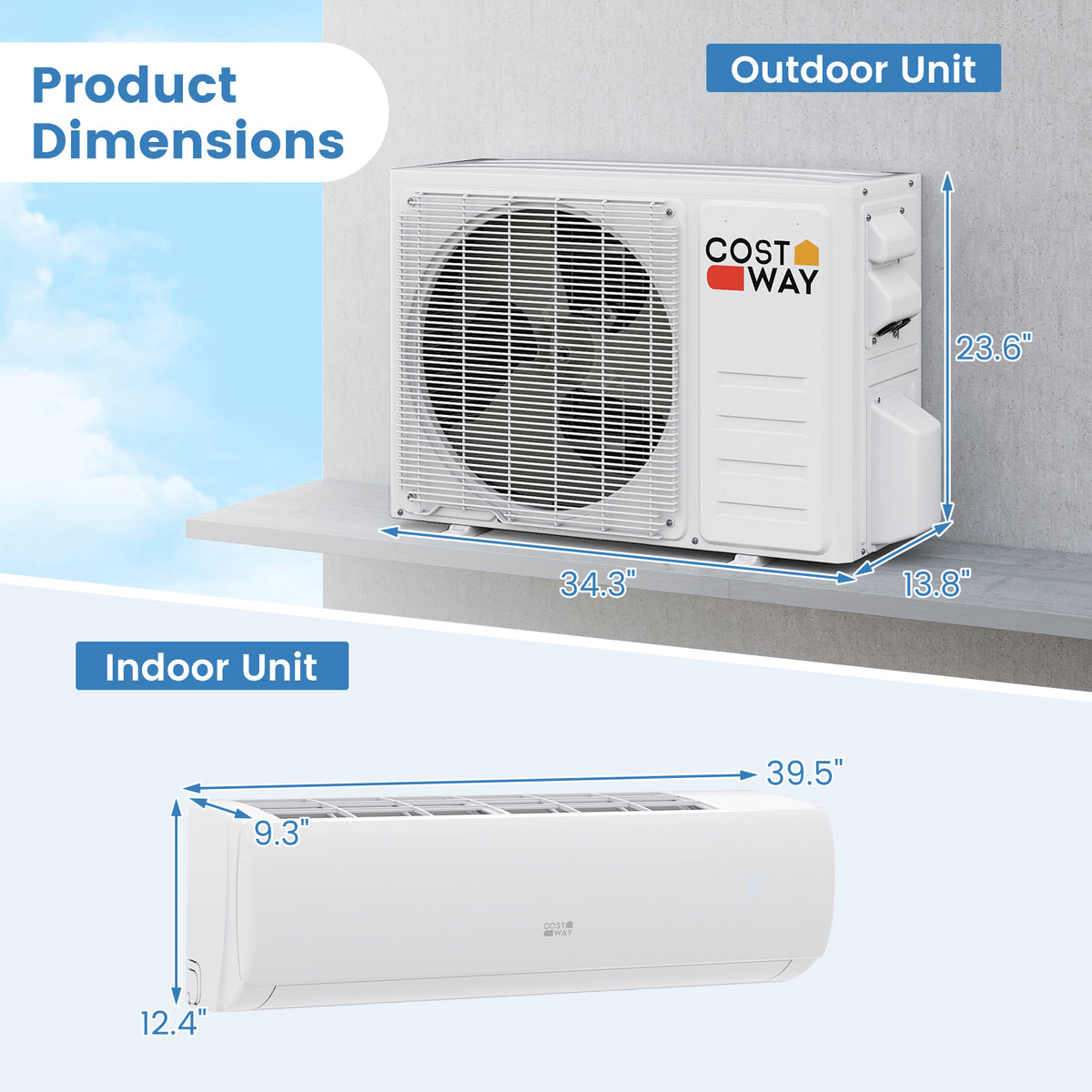

Indoor Unit Dimensions	39.5" x 9.3" x 12.4"
Outdoor Unit Dimensions	34.3" x 13.8" x 23.6"
Diameter of Air Pipe	1/2" (12.7mm)
Diameter of Liquid Pipe	1/4"
Diameter of Drain Pipe	0.67"
Max Remote Control Distance	39 ft
Min. Circuit Ampacity	17A
Cooling Power	2365W
Heating Power	1900W
Coverage Area	1500 Sq.Ft/139㎡
Air Flow Volume	676 CFM
Dehumidifying Capacity	122 Pints/Day (57.6 L/Day)
Temperature Setting Range	60°F~88°F/ 16℃~31℃
Indoor Noise Level	28 dB
Outdoor Noise Level	56 dB
Net Weight of Indoor Unit	29 lbs
Net Weight of Outdoor Unit	74.5 lbs
Box Qty	2(May vary by batch)
Package Includes	1 x Indoor Unit

Sizing note

Rated for about 1500 sq ft as a starting point. Room size is a starting point, not a load calculation. Sun, ceiling height, insulation, and humidity move the number. Sizing guide
