EcoGuard 9,000 BTU 19 SEER2 Mini Split Heat Pump, 115V

Name: EcoGuard 9,000 BTU 19 SEER2 Mini Split Heat Pump, 115V
Brand: Costway
SKU: FP11168US-WH+
Price: 589.99 USD
Availability: InStock

Series EcoGuardMPN FP11168US-WH+

$589.99

~~$599.99~~ $589.99

Shipping calculated at checkout.

Free freight included

In stock

Quantity is live from the supplier portal.

9,000BTU
19.0SEER2
115V
Coverage450 sq ft
WiFiYes

Ships freight, 3–7 business days, lower 48 only. Curbside LTL delivery. Someone should be home to receive a heavy condenser and indoor unit. No AK, HI, PR, US territories, or PO boxes. Shipping details

EcoGuard 9,000 BTU 19 SEER2 ductless mini split heat pump on 115V power. Rated for about 450 sq ft of living space. Inverter compressor with 10,000 BTU heating, 9.5 HSPF2, R454B refrigerant. Rated to operate down to -4°F outdoor. WiFi app and voice control built in; remote included. Ships freight free to the lower 48 in 3-7 business days. Professional EPA 608 install recommended.

9,000 BTU cooling / 10,000 BTU heating; covers about 450 sq ft

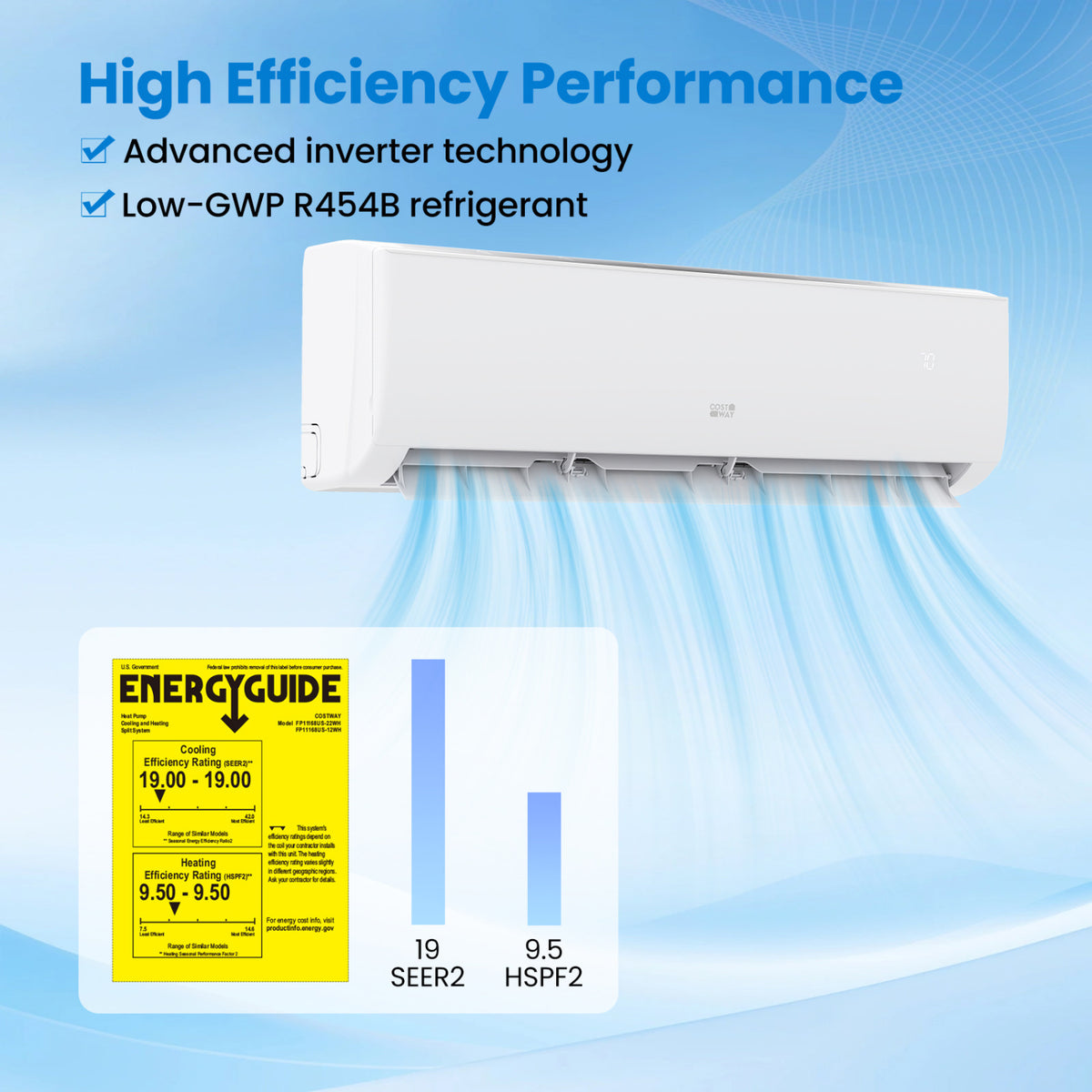

19 SEER2 / 9.5 HSPF2 inverter efficiency
115V, 60 Hz single phase; dedicated circuit

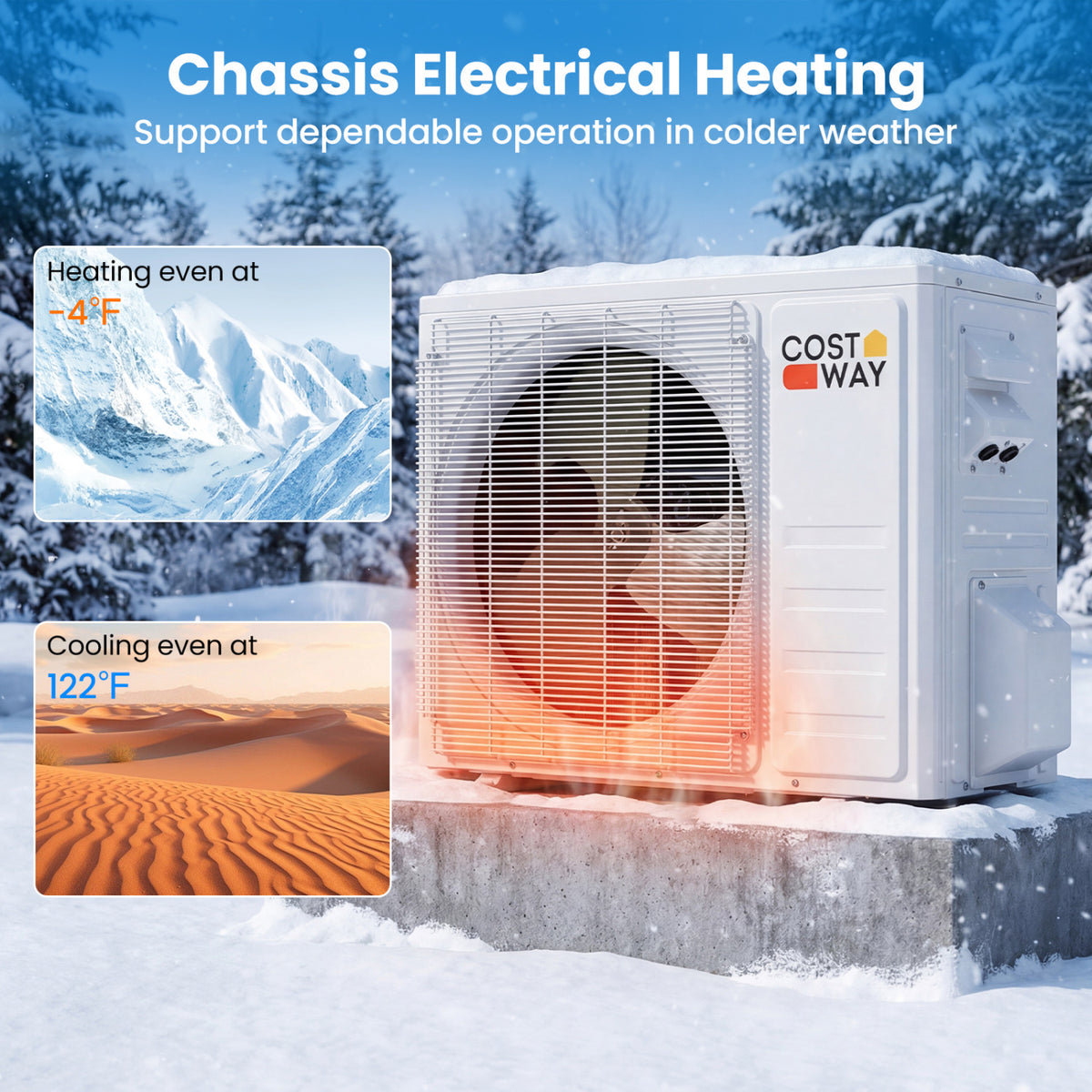

Heat pump operates down to -4°F outdoor
WiFi app control; remote included; 28 dB indoor

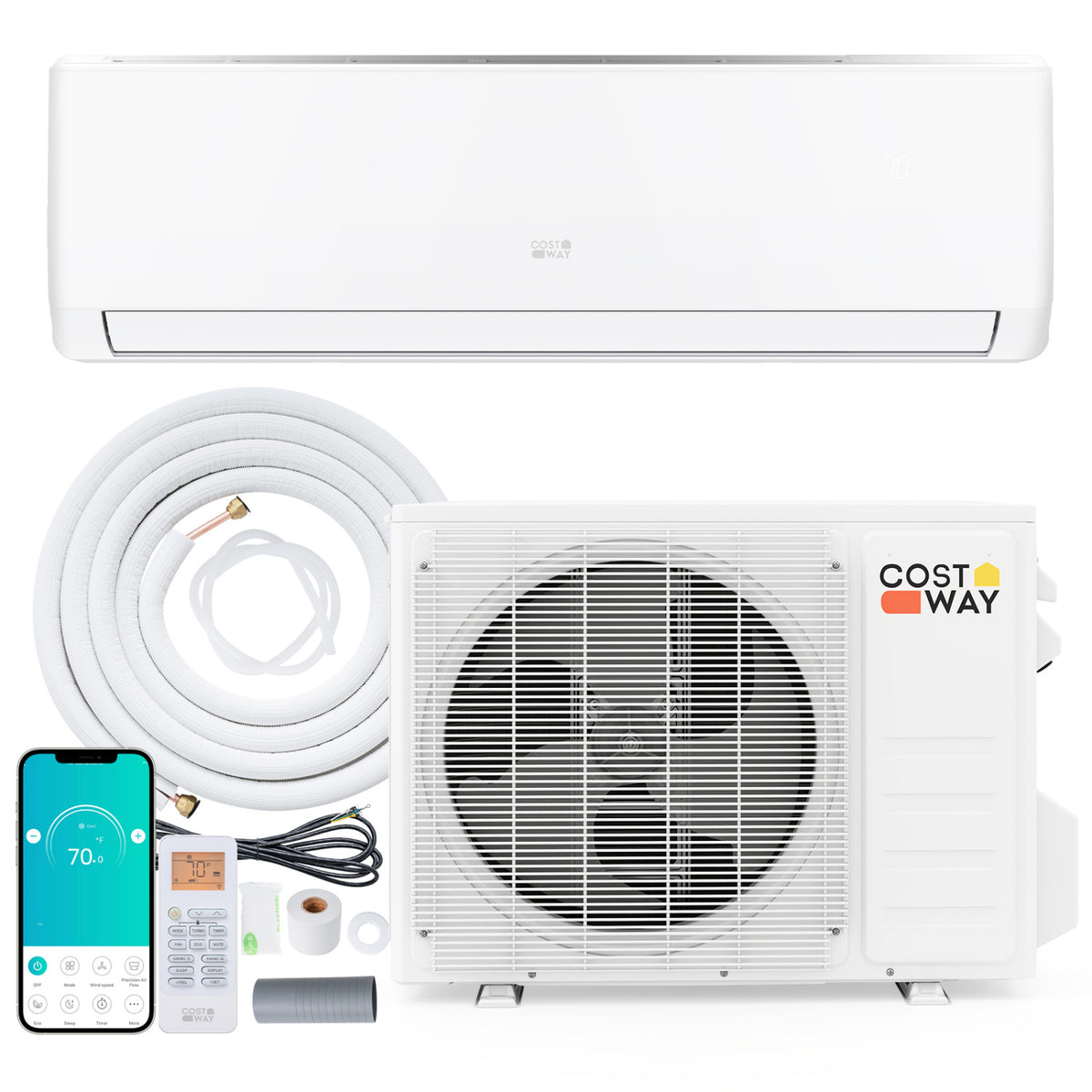

Ships as indoor head, outdoor condenser, 16.4 ft line set and install kit; 2 boxes

What's in the box

1 x Indoor Unit
1 x Outdoor Unit
1 x 13ft Communication Wire
1 x 16.4ft Copper Connection Pipe - Liquid Pipe
1 x 6.5 ft Drain Pipe
1 x 16.4ft Copper Connection Pipe - Gas Pipe
1 x Insulation Foam
1 x Remote Control
1 x Remote Control Holder
1 x Wall Sleeve
1 x Wall Cap
1 x Tape
1 x Putty
1 x User Guide

115V unit. Plan a dedicated 115V circuit; check the spec sheet and local code.

Specifications

Series	EcoGuard
Cooling capacity	9,000 BTU
Heating capacity	10,000 BTU
SEER2	19
HSPF2	9.5
Voltage	115V
Coverage	450 sq ft
Refrigerant	R454B
Heating min outdoor temp	-4°F
WiFi	Yes
Energy Star	No
Warranty	5-year (Costway limited warranty)
Line set	16.4 ft
Color	White
Material	Cold-rolled Steel Sheet, Copper, Aluminum

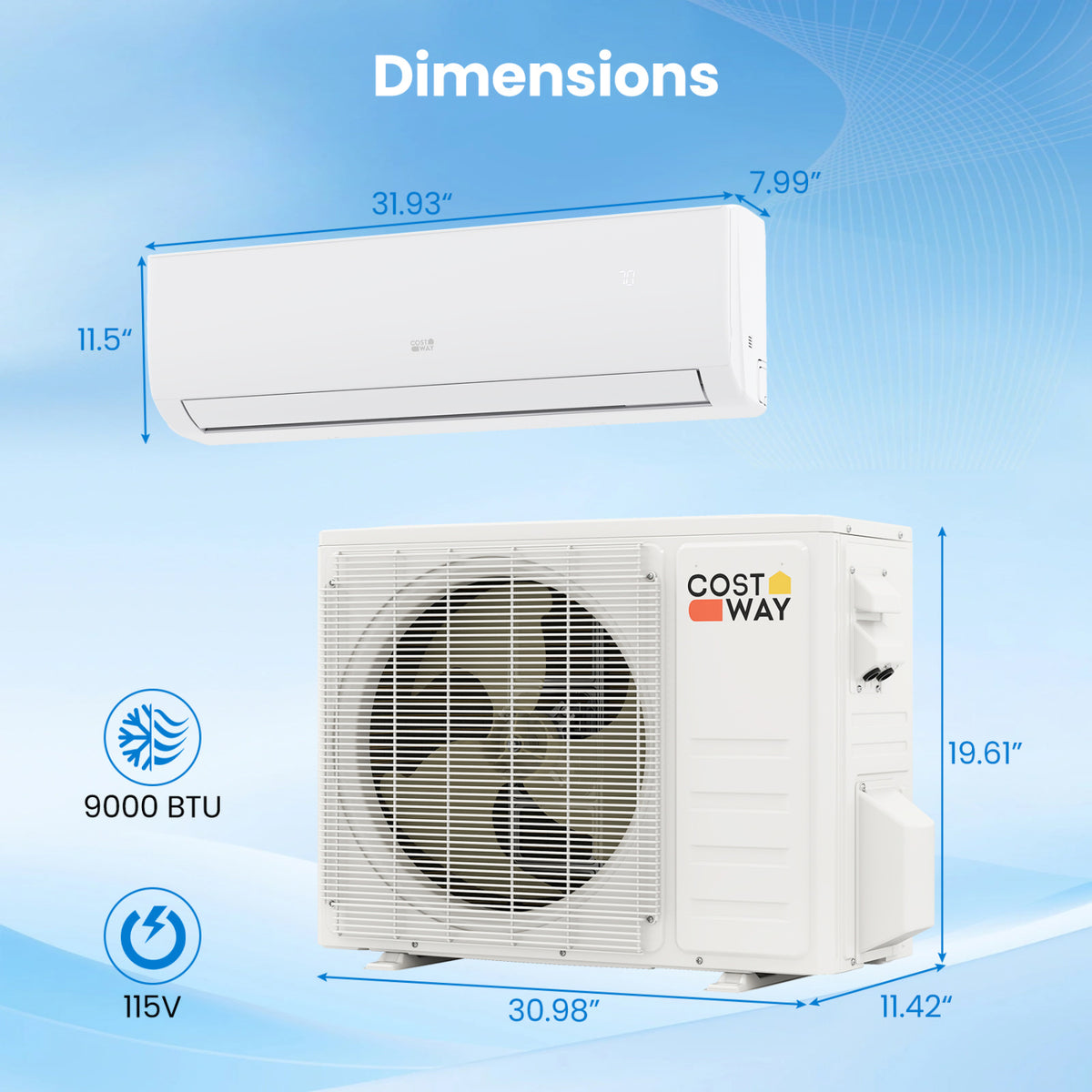

Indoor Unit Dimensions	31.93" x 7.99" x 11.5"
Outdoor Unit Dimensions	30.98" x 11.42" x 19.61"
Frequency	60Hz
Rated Input Consumption (Cooling)	750W
Rated Input Consumption (Heating)	750W
Coverage Area	450 sq.ft.
Maximum Air Flow Volume	342 CFM
Dehumidification Capacity	55.8 Pints/Day
Temperature Setting Range	60°F~88°F
Max Remote Control Distance	39.5 ft
Indoor Noise Level	28 dB
Diameter of Gas Pipe	3/8"
Diameter of Liquid Pipe	1/4"
Net Weight of Indoor Unit	19.8 lbs
Net Weight of Outdoor Unit	51.8 lbs
Box Qty	2
Is Assembly Required	Yes
Package Includes	1 x Indoor Unit,1 x Outdoor Unit
1 x 13ft Communication Wire	1 x 16.4ft Copper Connection Pipe - Liquid Pipe
1 x 6.5 ft Drain Pipe	1 x 16.4ft Copper Connection Pipe - Gas Pipe
1 x Insulation Foam	1 x Remote Control,1 x Remote Control Holder
1 x Wall Sleeve, 1 x Wall Cap	1 x Tape, 1 x Putty, 1 x User Guide

Sizing note

Rated for about 450 sq ft as a starting point. Room size is a starting point, not a load calculation. Sun, ceiling height, insulation, and humidity move the number. Sizing guide
